Edge Span U200 All in One Outdoor UPS

200w DC UPS, POE Switch and Battery All in One System

Edge Span U200 All in One Outdoor UPS Product Overview

Edge Span U200 All in One Outdoor UPS is an All in One Outdoor UPS specially designed by Edgeware for video surveillance, Outdoor WIFI Hotspot, Remote Telecom Site and other scenarios. Edge Span U200 inherits Edgeware’s consistent design thinking, All in One. Combine POE Switch, Lithium Battery, monitoring unit and UPS together. The main features of Edge Span U200 are as follows:

  • System-wide IP65 protection level, system-wide maintenance free. It can be adapted to the deployment of various harsh outdoor environments such as video surveillance, Outdoor WIFI, and Telcom.
  • System-wide remote monitoring and maintenance
  • Provide rich POE standards, can provide POE/POE+/POE++ according to customer requirements, and can also provide non-standard Passive POE to help customers solve the normalized access of different POE devices.
  • The UPS system is designed for an outdoor environment, with natural heat dissipation and no need for fans. The battery provides complete BMS functions for remote monitoring and management, and facilitates battery replacement and maintenance.

Edge Span U200 All in One Outdoor UPS Specification Overview

Model

 Function

Input

Output

UPS

Battery

Dimension

Ingress Protection

Customization

Edge Span U200 All in One Outdoor UPS

Outdoor UPS with POE Switch, Battery and Monitoring

AC 110V/220V Signal Phase

6GE POE/POE+(Default)

DC48V/DC12

Other Voltage Can be customized

200W/300W DC-UPS with DC48V/DC12V Output

Option1:48V9.6AH Lithium Battery Designed for 4 Hours Autonomy

Option2:48v4.8AH Lithium Battery

Designed for 2 Hours Autonomy

351mm*355mm*214mm

(W*H*D)

IP65/NEMA4

Available

Typical Application

•Outdoor Power Supply for Security Cameras

•Outdoor Power supply for Security System

•Wireless Access Point Outdoor Power Backup Enclosure

•4-8 Channel CCTV Power Supply

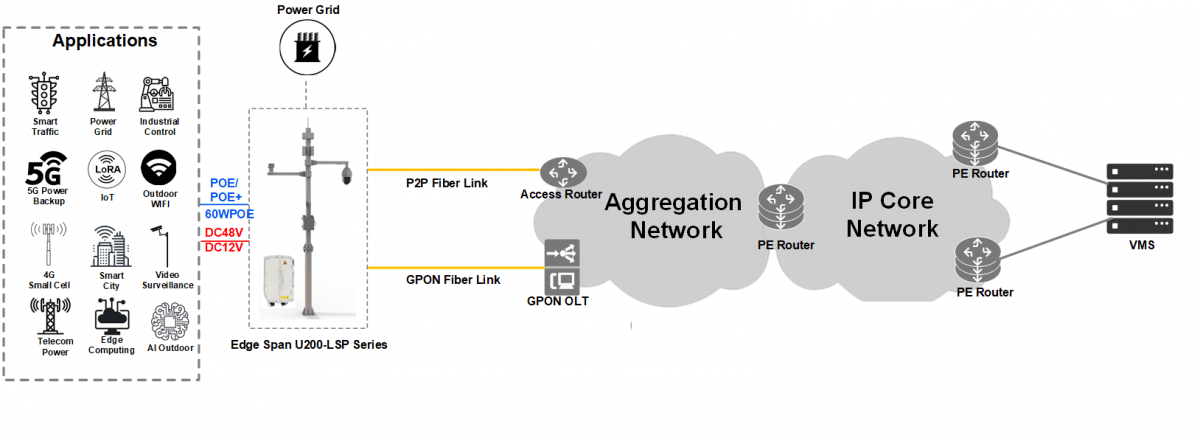

Edge Span U200 All in One Outdoor UPS Application Scenario

Edge Span U200 All in One Outdoor UPS Typical Interface Configuration

System Architecture



Edge Span U200 Outdoor UPS is an All in One Power Solution designed for Video Surveillance, Outdoor WIFI deployment and other Outdoor Edge Network scenarios. Edgeware recognizes that the pain point of these deployment scenarios is that the power and network suppliers are separated, resulting in customers having to purchase from different suppliers and purchase outdoor cabinets by themselves to integrate the entire solution. As a result, the reliability of the entire solution is poor, and the installation and integration costs are high during deployment. Therefore, Edgeware follows the consistent design philosophy of All in One, integrating POE Switch, UPS, battery and protection into an integrated IP65 Outdoor UPS.



  • The system includes 200W/300W DC-UPS, which can be selected according to customer scenarios. DC-UPS is completely based on natural heat dissipation design, no fan is required for heat dissipation, and all components are industrial grade.
  • The battery has two options: 48V4.8AH and 48V9.6AH for customers to choose based on different Autonomy scenarios, and of course can also be customized according to customer requirements. The battery comes with a BMS, which can be monitored and managed through Edgeware’s Coverngence Platform.
  • The system integrates Edgeware’s Smart Breaker and Surge Suppressor All in One module to provide 20KVA level lightning protection for the system. At the same time, it can provide Under-Voltage, Over-voltage, Over-Current, Short-Circuit Protection for the system.
  • The whole machine integrates the Monitoring unit to monitor the operation of the whole system.
  • The Edge Span U200 also offers a variety of different POE Switch options. Manageable Layer 2 POE Switch, Unmanageable Layer 2 POE Switch are typical options. But if you have special needs, you can also contact us for customization. We also have Layer 3 Switch with GE/10GE uplink, and Layer 3 MPLS CE Router as an option, so that you can make some special modifications to the Edge Span U200 to suit your scenario.



Edge Span U200 All in One Outdoor UPS Features

1.Maintance Free

The entire Edge Span U200 All in One Outdoor UPS system is constructed with an IP65/NEMA4 grade aluminum housing with strong outdoor corrosion resistance. And the system is fully sealed and can be deployed in any area without fear of environmental challenges.

Good heat dissipation design and all industrial-grade devices make the system no longer rely on fans, but rely on natural heat dissipation. Therefore, the system no longer needs to be maintained and replaced due to the fan.

2.Highly Reliable and Versatile UPS System

Industrial Outdoor UPS system is used in various and complex environments. The UPS systems we developed for the system are all based on outdoor harsh environment design and have industrial-grade stability and reliability, and can adapt to an ambient temperature of 60°C.

Based on the diversity of usage scenarios, we provide both DC48V and DC12V voltages. We can also add various voltage systems according to customer requirements.

3.Comprehensive Lightning and Surge Protection

The Edge Span U200 is used in an outdoor environment and is inevitably threatened by lightning and surge. Based on Edgeware’s rich experience in outdoor lightning protection, we have designed perfect lightning protection for both signal and power systems.

At the same time, based on Edgeware’s smart breaker, it realizes the protection of over-voltage, under-voltage, over-current and short-circuit.

4.Stronge POE and DC Power Providing for Your Devices
The Edge Span U200 Outdoor UPS provides options for various POE functions to help connect different types of outdoor equipment. For example, the camera will require various standard versions of POE such as 802.3af/at/bt. Or some equipment requires Passive POE, we can configure it according to your requirements.
In some scenarios, the devices you need to access will require DC12V, DC24V, DC48V and other power supply standards, and we can also configure them according to your requirements.
5.Rmote Moitoring Software Platform to Simplify Operation

Edgeware has always emphasized that CAPEX and OPEX are equally important. The core of reducing the OPEX of the Edge Industry PowerCube scenario is to provide complete Remote Monitoring.

Based on Edgeware’s Convergence Software Platform, it can realize complete remote monitoring for customers.

Edge Span U200-LSP Outdoor UPS Specification

Dimension

W*H*D 295mm*355mm*214mm

Weight

13.5kg(with all system)

Material

Aluminum

Ingress Protection

IP65

Heat Dissipation

No fan design, natural heat dissipation

System Operating Temperature

-20~+75°C, 5%~90% RH Non condensing

DC-UPS

Rated Power 200W or 300W

Input 110V/220V 50/60Hz Output 42.00-58.00VDC

Battery

48V4.8AH or 48V9.6AH Lithium Battery with BMS

Network and System Surge Suppression

20KVA

Smart Breaker

Remote control power on and off from Edgeware convergence platform

10A 110v/220v

Leakage Protection

Overvoltage Protection

Under Voltage Protection

Overcurrent Protection

Short circuit Protection

Lightning Protection

Network Module:

GE Downlink: 6-8*10/100/1000M Base-T ports

GE Uplink : (1-2) *10/100/1000M Base-X or Base T port

Layer 2 POE switch module manageable or non-manageable

Port number can be customized

PoE:

Downlink ports support

802.3 at/af, max PoE power 180W when configured with 200W DC UPS, 240W when configured with 300W DC UPS

802.3 bt 60W POE module optional.

Output Power

DC12V DC48 can be customized based on requirement

Output and Input Signal

DI/DO RS485 can be customized based on requirement

System Monitoring and Management

Work with Edgeware Convergence software platform to perform system monitoring and management

Environment Monitoring

System temperature, humidity.

Box open and close status

UPS Status Monitoring

Input Voltage, Output Voltage

Input/Output Power,Rated Power

Battery Charge/Discharge Current

Input Current, Load Current

Normal, Power Grid Off, Fault

Smart Breaker Monitoring

Remote Control

Failure Status

Voltage

Current

Undervoltage

Overvoltage

Overcurrent

Current leakage

Battery Status Monitoring

Battery voltage , current, remaining capacity, temperature

Battery working status, battery charge and discharge current

Battery health estimation( Battery life time estimation )

External Light Control

External light control t

Typical Application Scenario

cctv cabinet,solar cabinet, solar termination cabinet, Solar Controller enclosure, video surveillance cabinet, IoT Cabinet, IoT device enclosure, IoT enclosures

Smart City, Industrial Control, video surveillance, Telecom

Network Module Switching Capacity

128Gbps

MAC

8K

Network Module Protocol Supported

4K VLAN based on port, IEEE802.1q VLAN based on the protocol, VLAN based on MAC QinQ configuration, Port configuration of Access, Trunk, Hybrid

LACP, Static aggregation, Max 3 aggregation groups and 8 ports per group.

STP (IEEE802.1d),RSTP (IEEE802.1w),MSTP (IEEE802.1s)

MLD Snooping v1/v2,Multicast VLAN IGMP Snooping v1/v2, Max 1024 multicast groups, Fast log out

Bidirectional data mirroring based on port

Flow-based Rate Limiting Flow-based Packet Filtering 8*Output queues of each port 802.1p/DSCP priority mapping Diff-Serv QoS,Priority Mark/Remark Queue Scheduling Algorithm (SP, WRR,)

Port-based Issuing ACL,ACL based on port and VLAN L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc

IP-MAC-VLAN-Port binding ARP inspection,Anti-DoS attack AAA & RADIUS,MAC learning limit Mac black holes,IP source protection IEEE802.1X & MAC address authentication Broadcast storm control,Backup for host datum

SSH 2.0,SSL,Port isolation,ARP message speed limit User hierarchical management and password protection

DHCP Client,DHCP Snooping,DHCP Server,DHCP Relay
