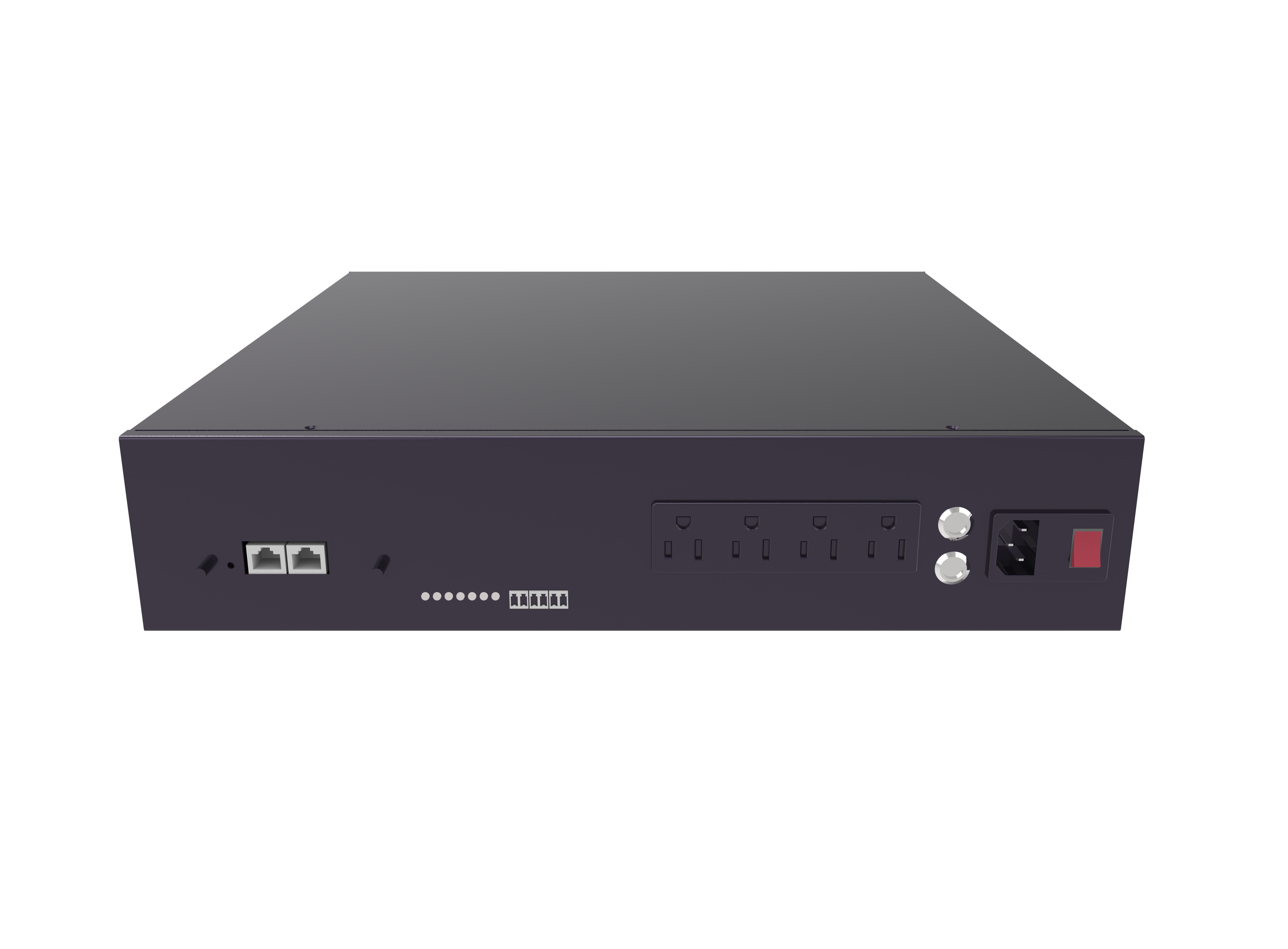

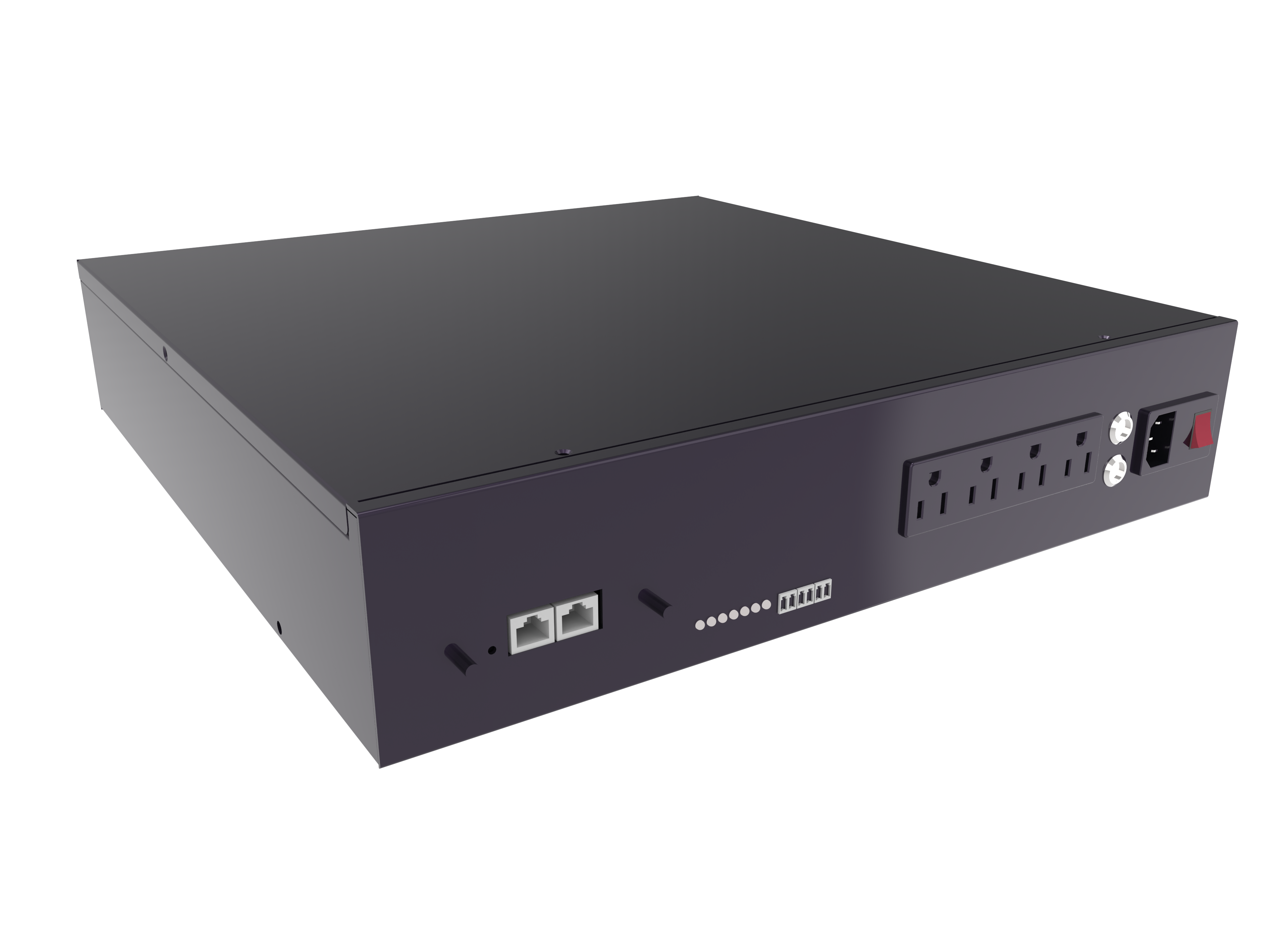

Edge Chain U1000-AC High Temp UPS Designed for Out Cabinet

1000VA AC-UPS ,LiFePO4 Lithium Battery for Extreme Environments

Edge Chain U1000-AC High Temp UPS Designed for Out Cabinet

The Edge Chain U1000-AC high-temp UPS system is specifically designed for outdoor cabinets in extremely hot regions. Its overall design is optimized for the hot environments of the Middle East, equatorial Africa, and the equatorial Caribbean. The Edge Chain U1000-AC's built-in industrial-grade UPS module utilizes natural cooling, eliminating the impact of fragile mechanical components like fans on overall system stability and reliability. With a capacity of 1000VA, the Edge Chain U1000-AC can meet the power needs of most small outdoor cabinet sites, such as CCTV cabinets, IoT cabinets, and telecom cabinets. The Edge Chain U1000-AC is available in 110V and 220V versions, with optional power plugs tailored to the customer's location. To achieve its high-temperature UPS functionality, the Edge Chain U1000-AC utilizes a highly heat-resistant LiFePo4 lithium battery, enabling the system to operate within a -30°C to 65°C operating range. The Edge Chain U1000-AC high-temp UPS also features comprehensive remote monitoring and management capabilities, enabling monitoring and management of core UPS parameters, battery BMS parameters, and enclosure temperature and humidity. Edgeware provides Convergence software for monitoring and management. The Edge Chain U1000-AC can also be configured to report to third-party software management platforms via MQTT or SNMP.

Contact Us

Features of Edge Chain U1000-AC High Temp UPS

High Temperature Working Range

The Edge Chain U1000-AC high temp UPS features a wide operating range. It can operate in temperatures as high as 65°C and as low as -30°C. This allows it to operate stably in extreme environments.

Enclosure with Rugged Design

Considering the complex working environment of the extreme temperature UPS system, the entire system adopts a rugged design and is mainly made of aluminum.

Completely Rust-proof

The Edge Chain U1000-AC high temp UPS is designed for deployment within various kind of outdoor cabinets in hot environment. Many CCTV cabinets feature simple designs and IP55-level ingress protection. This exposes the equipment within the cabinet to potential exposure to ambient air. In hot and humid environments, system rusting poses a significant challenge. The Edge Chain U1000-AC high temp UPS, with its fully aluminum housing, eliminates this risk.

Surge Protection

The Edge Chain U1000-AC high temp UPS is designed for deployment within outdoor cabinets. Often, poor surge protection in outdoor cabinets can negatively impact the UPS system. Therefore, the Edge Chain U1000-AC high temp UPS AC input and output features 20kA surge protection, protecting it from lightning.

All Components Natural Heat Dissipation

The system relies on its own cast aluminum shell to dissipate heat naturally, without mechanical heat dissipation parts such as fans, thus ensuring that the system can better achieve maintenance-free and reliable operation outdoors.

High Temperature Resistant Long Life Battery

Lithium battery is embedded in the system. The lithium battery is designed for the environment of outdoor with high temperature tolerance. In order to better remotely manage the battery status, it has a built-in BMS (Battery Management System), which can effectively monitor the battery voltage, current, capacity, temperature, protection status, cycles, battery cell voltage balance and other key parameters, so that the OAM team can know the battery status on the central software platform.

Industrial UPS for Harsh Environment

Edge Chain U1000-AC high temp UPS has built-in an industrial level UPS designed for high temperature environments. Its small-scale design based on natural heat dissipation can make the entire system small and easy to deploy. The UPS and battery are fully monitored and managed by the software system. Any things happened will be collected by software platform

In Box Environment Monitoring

The system monitors the environment in the box in real time, so as to know the ambient temperature and humidity inside the enclosure. At the same time, the temperature of each key component such as battery and UPS is monitored to ensure the stable operation of the entire system.Based on this actual operation data, we can know the actual temperature conditions in some specific areas and make targeted optimizations for customer scenarios.

Router Embedded

Industrial router embedded to make the whole system as router node.

Main Stream VPN Supported

The system supports mainstream VPN technologies such as IP SEC VPN, GRE, L2TP, etc. It is convenient for customers to build a secure network and plan the entire network IP.

SNMP Management

Edge Chain U1000-AC High Temp UPS for CCTV Cabinet takes into account various customer remote management and monitoring scenarios, providing customers with various key data such as in-box temperature and humidity, UPS operation parameters, battery operation parameters, etc., and can be delivered to customers in the form of SNMP Mibs for integration into the customer’s management software

MQTT Management

Edge Chain U1000-AC High Temp UPS also can be managed by MQTT protocol.

Main Scenarios of Edge Chain U1000-AC High Temp UPS

West Africa

Middle East

Equatorial Region

Cold Area

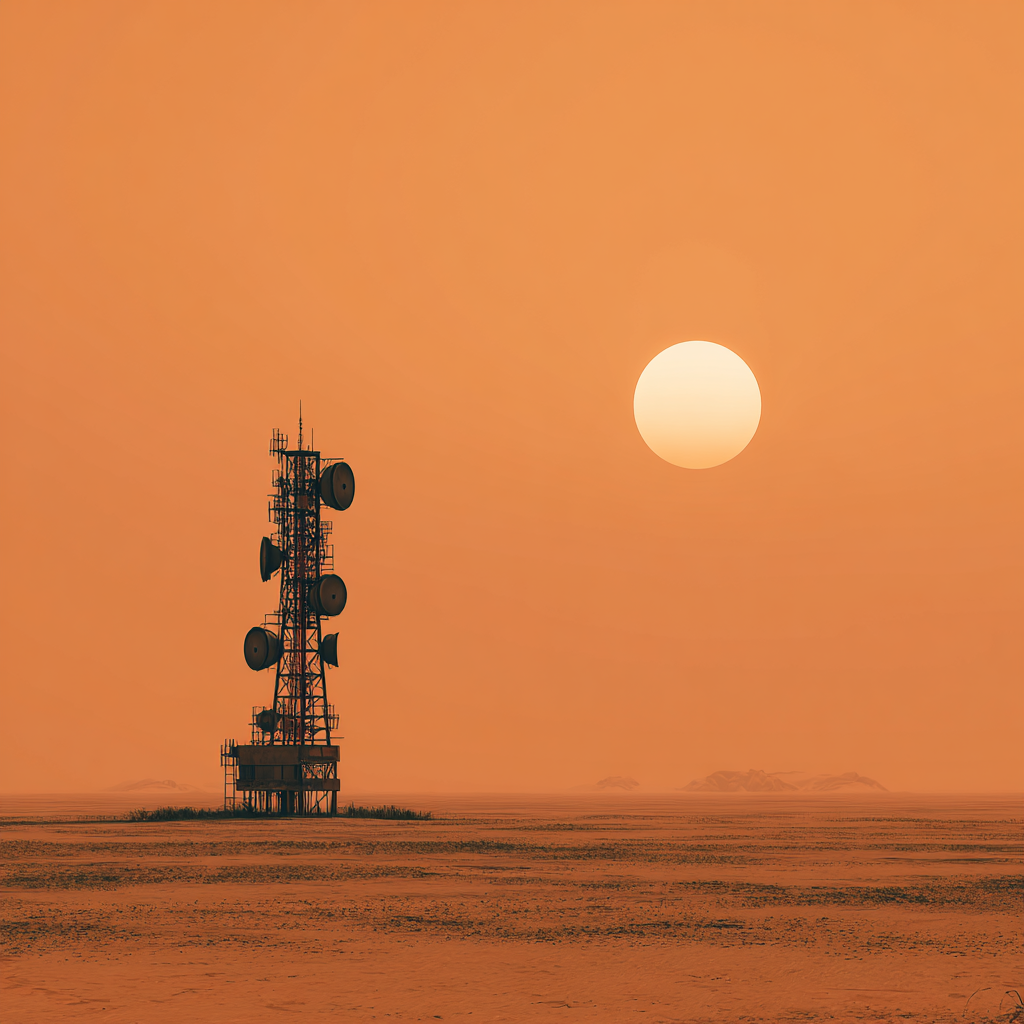

The hot climate of West Africa and some desert regions cause typical UPS system deployments to fail within one to two years. The Edge Chain U1000-AC is optimized for deployment in these areas.

The Middle East region has an extremely hot climate, with ambient temperatures often reaching 55°C or higher. If a UPS system were placed in an outdoor cabinet according to conventional design methods, the internal temperature would reach 55°C or higher. However, typical UPS systems are designed for an operating temperature range of 0-40°C, making them incapable of long-term stable operation in the Middle East. The Edge Chain U1000-AC is designed for this scenario.

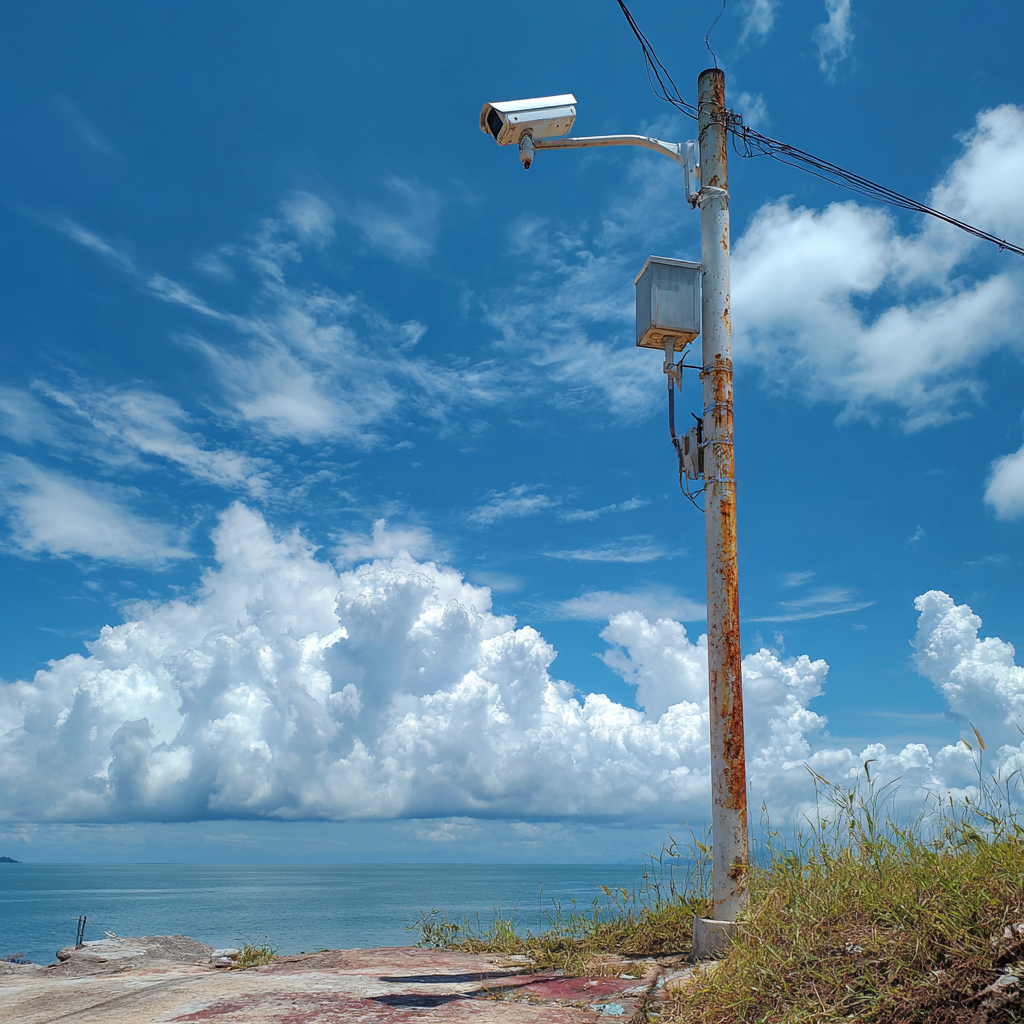

Equatorial humid regions, such as the Caribbean, can experience high temperatures and humidity. Outdoor scenario systems typically use IP55 outdoor cabinets with fan cooling. This allows high-humidity air to enter the cabinets, potentially corroding the UPS system. The Edge Chain U1000-AC, however, takes these factors into consideration with an all-aluminum design, ensuring high temperature resistance while also preventing corrosion caused by high humidity.

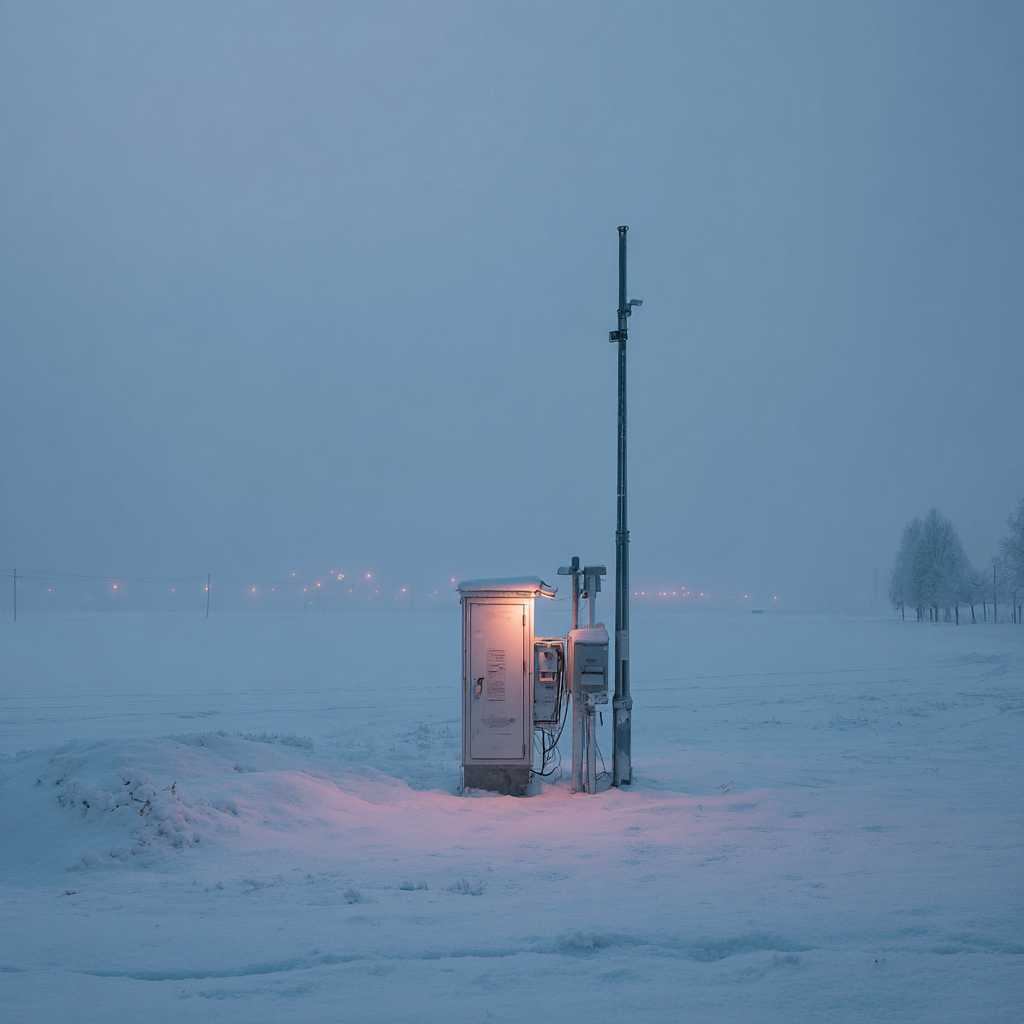

The Edge Chain U1000-AC is optimized not only for high temperatures but also for low temperatures, enabling the system to operate in -30°C environments. The system’s heating algorithm has also been optimized to ensure the battery remains within an ideal temperature range during low-temperature operation without compromising battery capacity.

Edge Chain U300 High Temperature UPS General Specifications

  • IP30
  • W*D*H 422mm*433mm*88mm(2U)
  • 8kg
  • Aluminum Box Rust Proof
  • Operating Temperature:-30~+65°C
  • Working Humidity:5%~90%
  • Power Surge Protection:20KAInstallation:
  • Horizontal Installation in 19 Inch Rack

    Horizontal Installation Cabinet Plate

    Din-Rail Vertical Installation

  • Rated Power:1000VA
  • Input Voltage:110V/220V
                               2*Channels DC12V 30W Max

                                      1*Channel RS485 Output

  • 1*1000Base-T WAN(For SNMP)
  • 1*1000Base-T LAN(For LAN OAM)
  • Industrial Level 1000VA UPS
  • 240Wh 5Ah48V LiFePO4 Lithium Battery Typical, 480Wh 10Ah48V optional
  • UPS, Battery and In Enclosure Environment Monitoring and Management by SNMP or MQTT

Port Configuration

Comprehensive Electricity Protection

Edge Chain U1000-AC High Temp UPS is designed with perfect electricity protection for outdoor application . First of all, the lightning protection system is designed with a built-in 20KA level lightning surge suppressor, which not only protects the entire system in outdoor lightning protection, but also simplifies customer installation. In addition, the AC input is designed with under-voltage, over-voltage, over-current protection, and will detect the online status of the power grid, AC input voltage, current, power and other parameters. For UPS output, it is designed with under-voltage, over-voltage, over-current, short circuit, over temperature protection. This makes the entire system reliable and stable when running outdoors.

Remote Reset UPS to Reset All Load

The UPS system in Edge Chain can be remotely restarted through SNMP or MQTT. When the restart command is executed, the UPS system in will restart for 5 seconds, thereby cutting off the load power supply for 5 seconds and then restoring it. This can achieve the purpose of restarting all the downstream load devices to help solve the restart and debugging of various types of customer equipment. Thus can reset all system in outdoor cabinet to slove some system freeze problem .

Environment Management

The Edge Chain deployment environment is relatively harsh, so the system has built-in temperature and humidity sensors to monitor changes in cabinet temperature and humidity in the deployment area.

UPS State Monitoring

The UPS module in Edge Chain is monitored and managed in real time. This information can report to customer software platform by SNMP. This includes various parameters such as voltage, current, UPS core temperature, PFC voltage, power, abnormal status, etc. This makes it convenient for the operation and maintenance team to manage the operation of the site. When a problem occurs, the UPS status history can also be used to determine the problem.

Battery Management System

The lithium battery in the Edge Chain is embedded with a BMS module that monitors the battery voltage, current, capacity, voltage balance between cells, number of cycles, and other information. In addition, the battery itself is equipped with two upper and lower temperature probes to monitor the actual operating temperature of the battery in the hot climate of the Middle East. All this information will be reported to the customer software platform via SNMP for remote monitoring.

Main Steam VPN Supported for Enhanced Security

The Edge Chain high-temp UPS is a UPS system. Its built-in MCU is a powerful router that provides mainstream VPN functions such as IP SEC, L2TP, GRE, and OPEN VPN, facilitating customer network planning.

Specifications

Table 1: Edge Chain U1000-AC High Temp UPS General Specification



220V Version

110V Version

Dimension

422mm*433mm*88mm(2U)(W*D*H)

Enclosure Material

Aluminum Box Rust Proof

Ingress Protection

IP30

Weight

8kg

Operating Temperature and Humidity

-30~+65°C/10 % to 95 % non-condensing(Discharging Temperature)

System Surge Protection

Power Input Surge Protection:20KA

Power Output Surge Protection:20KA

System Input Voltage Range

176-264VAC

88-132VAC

System Input Voltage Range

220VAC

110VAC

Input Voltage Frequency

50Hz/60Hz Based on Configuration

60Hz

System Max Input Current

10A

20A

Rated Output Voltage

Output Voltage: When power grid online follow ac input voltage

When power grid offline 220±10VAC

Output Voltage: When power grid online follow ac input voltage

When power grid offline 110±5VAC

UPS Rated Output Current

5A

10A

Rated Capacity

1000VA

Output Harmonics

≤5% (Resistive load)

UPS Charge Voltage

54.6VDC

UPS Charge Current

6A

Battery

Typical with 240Wh 48V5AH LiFePO4 Lithium Battery

10Ah (480Wh), 15Ah (720Wh), 20Ah (980Wh) As Optional Choices

Battery Management

Embedded with BMS

Battery Rated Voltage

54.6V

Discharging Voltage Cutoff

42V

Max Charging and Discharging Current

20A

Monitoring and Control Module

EX200 Edge Control Unit

Downlink 1*10/100/1000 Base-T RJ45 ports

Uplink 1*10/100/1000 Base-T RJ45 ports

WIFI can be configured

1*RS485,1*RS232

Report BMS, UPS and environment information by SNMP to Customer Software Platform

SNMP Management

SNMPV2C/SNMPV3

Table 2: MCU Embedded Module Specification



EX200 Management Module Specification

WAN

1 x WAN port (can be configured to LAN) 10/100/1000 Mbps

LAN

1 x LAN port, 10/100/1000 Mbps

CPU

ARM-A53 dual core CPU 1.3Ghz (MTK mt7981B)

RAM

1 GB, DDR4

EMMC

Default 4G (8-32GB optional)

FLASH storage

32 MB, SPI NOR Flash

Network protocols

TCP, UDP, IPv4, ICMP, NTP, DNS, HTTP, FTP, SSL v3, TLS 1.3, ARP, PPP, PPPoE, SSH, DHCP, Telnet client, SNMP, MQTT

Connection monitoring

Scheduled tasks, ICMP for link inspection

DHCP

Static and dynamic IP allocation

QoS

Traffic priority queuing by source/destination or port

VLAN

Enables logical network segmentation for broadcast domain isolation and security zoning

Firewall

Pre-configured firewall rules can be enabled via WebUI; Port forward; DMZ; DNAT; SNAT; MASQ

Attack prevention

DDOS prevention, IP Spoofing, port scan prevention, SYN flood protection, Multicast Restriction, IDENT Blocking

Domain Filtering

Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only

OpenVPN

Client-only (no server functionality), 40 encryption methods

OpenVPN Encryption

AES-128-CBC, AES-128-CFB, AES-128-CFB1, AES-128-CFB8, AES-128-OFB, AES-192-CBC, AES-192-CFB, AES-192-CFB1, AES-192-CFB8, AES-192-OFB, AES-256-CBC, AES-256-CFB, AES-256-CFB1, AES-256-CFB8, AES-256-OFB, BF-CBC, BF-CFB, BF-OFB, CAST5-CBC, CAST5-CFB, CAST5-OFB, DES-CBC, DES-CFB, DES-CFB1, DES-CFB8, DES-EDE-CBC, DES-EDE-CFB, DES-EDE-OFB, DES-EDE3-CBC, DES-EDE3-CFB, DES-EDE3-CFB1, DES-EDE3-CFB8, DES-EDE3-OFB, DES-OFB, DESX-CBC, RC2-40-CBC, RC2-64-CBC, RC2-CBC, RC2-CFB, RC2-OFB

IPsec

IKEv1, IKEv2, supports up to 10 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)

GRE

GRE tunnel

L2TP

Client/Server mode switchable

VXLAN

Provides seamless L2 connectivity

SSH

SSH (v1, v2)

SNMP

SNMP (v1, v2, v3), SNMP trap

×
