All in One Security Camera Solar Power Supply and IoT Solar Power Edge Span S60-5GPS
MPPT 600W Solar Controller ,2640Wh Lithium Battery,POE, IoT Edge Computing , 4G/5G All in One System

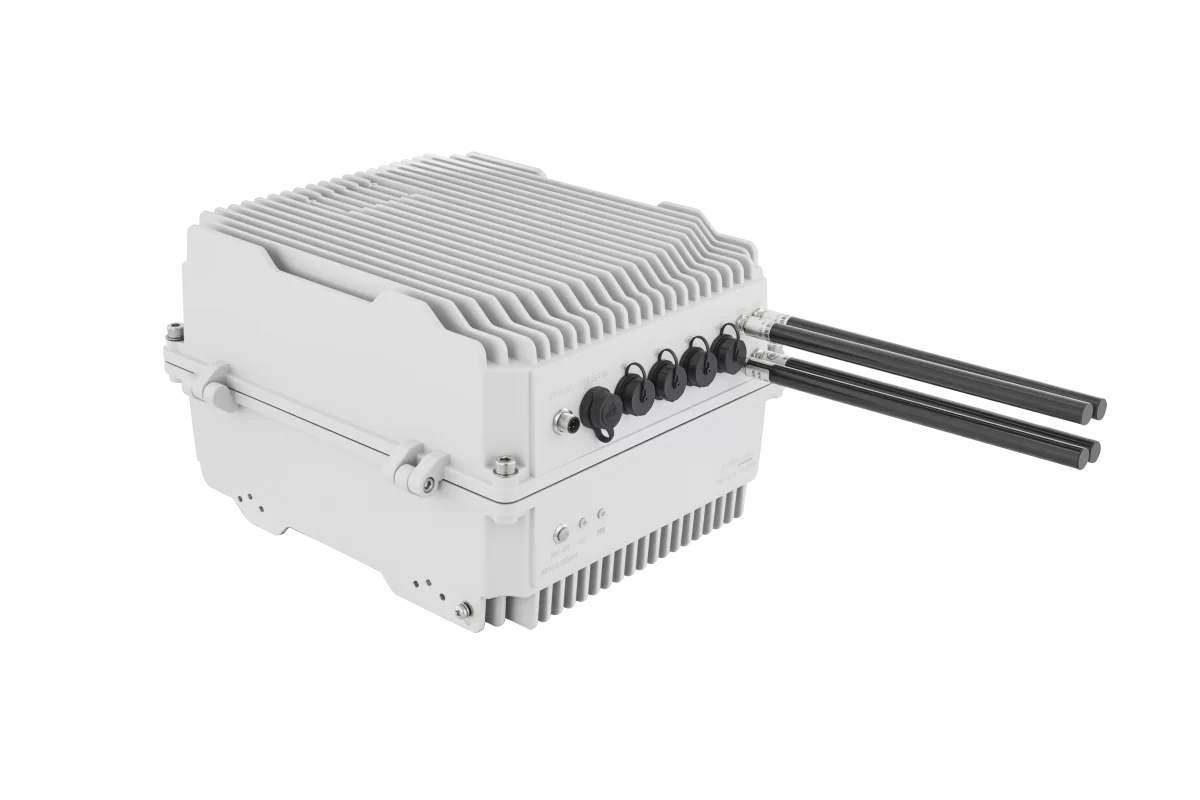

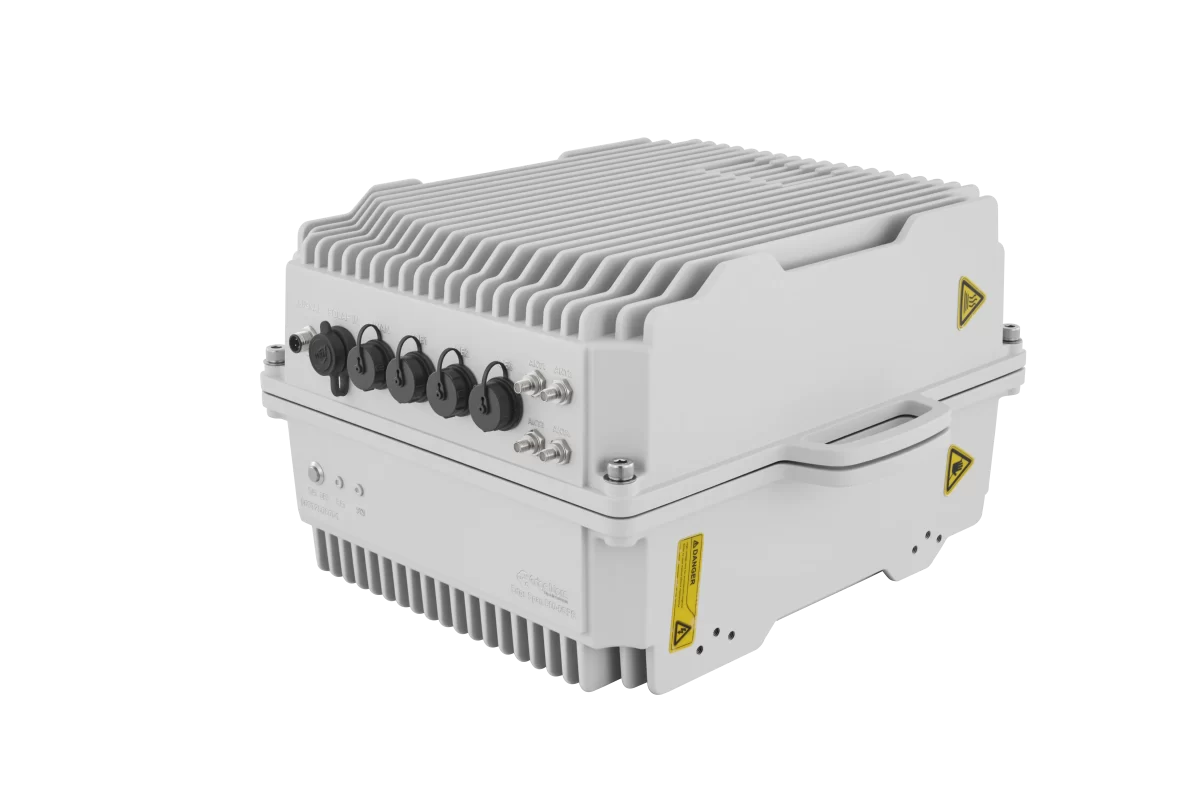

All in One Security Camera Solar Power Supply and IoT Solar Power Edge Span S60-5GPS
The Edge Span S60-5GPS is an all-in-one smart node designed specifically for security camera solar power supply and IoT solar power scenarios. In many smart city scenarios, security cameras and IoT sensors are deployed simultaneously. These sensors have different interface, protocol, and power requirements. The Edge Span S60-5GPS is designed as an all-in-one device specifically for IoT and security camera solar power supply scenarios. Taking into account the load type of the deployment environment, the entire system is designed to IP65 ingress protection level. The entire system uses the all in one design principle to embed solar controller, lithium battery, PoE router, and 4G/5G router into the system, IoT edge control thereby avoiding customers from connecting and building the system on site to achieve one-stop delivery. For scenarios without 4G/5G network coverage, customers can also choose not to configure 4G/5G modules and choose to use wireless P2P/P2MP technology to build a backhaul network. The uplink interface of Edge Span can support POE, so that customers can use the uplink interface to connect wireless P2P/P2MP antenna and provide POE power supply. The entire system can provide PoE/PoE+ power supply for up to three CCTV cameras, POE++ 802.3bt module can also be configured.For IoT sensor provides industrial level signal port which integrates 12V or 24V power supply and modbus protocol. Other protocol types can also be added according to customer requirements to simplify customer's IoT sensor integration.
Features of Edge Span S60-5GPS
Solar Power and Battery Backup
The Edge Span S60-5GPS security camera solar power supply integrates an industrial-grade 600W MPPT solar controller designed for low-power applications in security cameras and IoT. Its design prioritizes natural heat dissipation and high-temperature resistance, making it highly suitable for outdoor deployments. Furthermore, its integrated, high-temperature-resistant, 2640Wh lithium battery provides 48-72 hours of system autonomy in typical scenarios. The solar controller and battery feature detailed management capabilities, which can be managed via Edgeware software or reported to the customer’s management platform via SNMP/MQTT.
Pre-Integration for Plug and Play
Outdoor installation of security camera solar power supplies and IoT solar power systems is complex. Designing and installing them using a typical large outdoor cabinet can be costly. IoT solar power systems, in particular, consume relatively little power, and an overly large installation can make the entire project ineffective. The Edge Span S60-5PGS features a highly integrated design and plug-and-play installation, greatly facilitating installation and deployment.
Programmable Edge Computing and Control Core
Edge Span S60-5GPS is equipped with an edge computing control core to meet the needs of outdoor CCTV scenario. It can collect IoT sensors and control and collect data from the Edge Span system itself according to the scenarios that customers need to implement. It also realizes data synchronization and computing collaboration between the cloud and the edge.
4G/5G Backhaul Capability
Edge Span S60-5GPS security camera solar power supply can be used as a 4G/5G industrial router. We can configure different modules according to customer needs to match the wireless frequency bands required by customers. In addition, according to the actual bandwidth requirements of customers, the 4G module can be configured with CAT1, CAT4, CAT6, CAT12, etc. The wireless module can be used as the primary and backup for the uplink port of the device.
IP65/NEMA4X
The deployment scenario of Edge Span S60-5GP is based on outdoor CCTV scenario. The deployment environment is generally harsh and on-site maintenance is difficult. Therefore, we designed the entire system to have an IP65/NEMA 4X protection level, thereby achieving long-term maintenance-free and greatly saving on-site maintenance costs.
Outdoor Optimized Rugged Design
The Edge Span S60-5GPS security camera solar power supply and IoT solar power is designed for the complex outdoor environment. Therefore, we use a rugged design to ensure the long-term stable operation of the entire system in outdoor environments.
No Rust for Long Term Operation
The entire Edge Span S60-5GPS security camera solar power supply and IoT solar power is built in a cast aluminum housing. Due to the advantages of the cast aluminum housing itself, the entire system is rust-proof. It is particularly suitable for deployment in extreme areas, such as forests, seaside, and high humidity areas.
Surge Protection
Another major challenge in the outdoor environment is surge protection. To address this challenge, the Edge Span S60-5GS has a complete grounding design. At the same time, a complete lightning protection system is designed for all device interfaces. The signal interface has a 6kV level lightning protection, while the power interface has a 20Ka level lightning protection.
Complete POE+/POE++ Function
The typical configuration of Edge Span S60-5GPS provides 3 802.3at (POE+) interfaces so that customers can power various WIFI APs, CCTV cameras and other devices at outdoor sites. For some special scenarios, 802.3bt (POE++) interfaces can be provided according to customer needs. We will recalculate the power budget of the entire solar battery enclosure based on the customer’s power so as to determine the final configuration plan with the customer.
Remote Monitoring and Management
When a site is working outdoors and is also a solar power based site, there are many things that the operation and maintenance personnel need to pay attention to. For example, the site is overcast and rainy for many days, causing the solar cells to run out, or the core equipment of the site is faulty. Edgeware provides a complete remote monitoring and management solution, allowing customers to know the overall operation and statistics of the site at the NOC.
IoT Sensor Integration
The Edge Span S60-5GPS IoT solar power system can be used as an IoT solution. We can help customers select and integrate their desired IoT sensors, as well as third-party IoT sensors of their choice. After integration, we perform the corresponding integration and calculations at the edge and report to the Edgeware software platform or the customer’s third-party software platform.
Remote Monitoring and Management
The Edge Span S60-5GPS provides customers with a variety of APIs to facilitate data integration, such as the commonly supported MQTT and SNMP. Northbound data interfaces can also be customized according to customer requirements.
Main Application Sceanrios
Solar Power Based 4G/5G Backhaul Scenario
- 4G/5G Backhaul Solar Scenario
Edge Span S60-5GP security camera solar power supply can be based on 4G/5G backhaul. At this time, we will configure 4G/5G wireless module in the system to ensure that the traffic of CCTV camera can be wirelessly returned to NVR and software server in HQ
- Wired Network Backhaul Solar Scenario
This scenario is when you have a wired network for backhaul, such as optical fiber or Ethernet port, and you can use Edge Span S60-5GP as the core of backhaul and power.
- Wireless Relay Node
In the solar power supply for CCTV camera scenario, the backhaul is more likely to be based on Wireless P2P/P2MP devices. In this scenario, some sites are located in remote areas and need to be extended through Wireless P2P/P2MP relay stations.
- Wireless Access Node
The wireless access node of the security camera solar power supply is responsible for transmitting the CCTV camera video stream back to the entire network. In many scenarios, the video stream is also transmitted back through wireless P2P/P2MP.
Based on the above two scenarios, Edge Span S60-5GP does not need to be configured with a 4G/5G wireless module, and only needs to use the basic functions of the built-in POE Router. The topology is as follows:

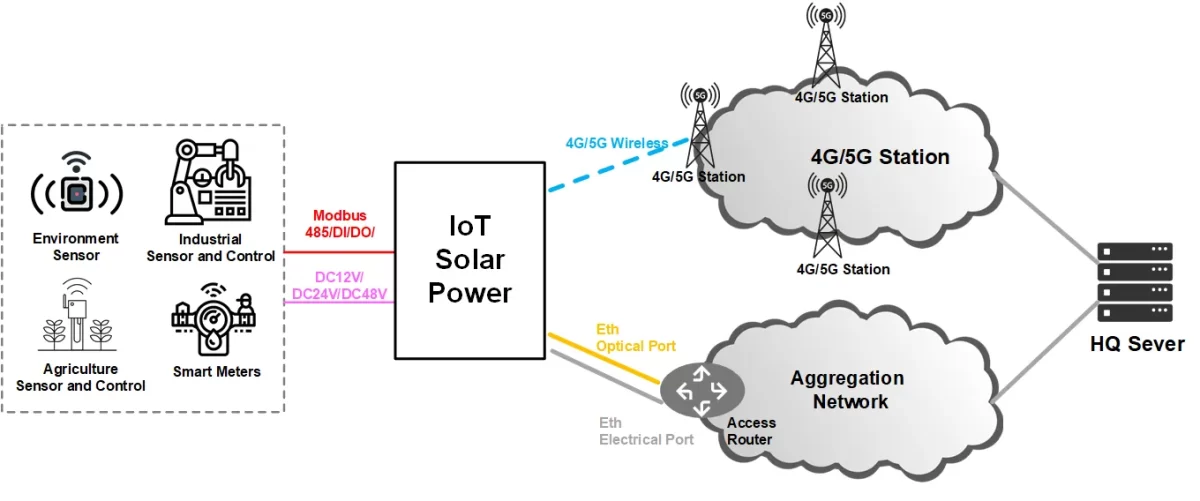

The Edge Span S60-5GPS easily builds a solution for IoT solar power scenarios, as shown in the figure above. Solar power powers the entire system, while also providing common DC12V and DC24V power to IoT sensors. It also integrates interfaces such as RS485, DI, and DO, as required by IoT sensors.

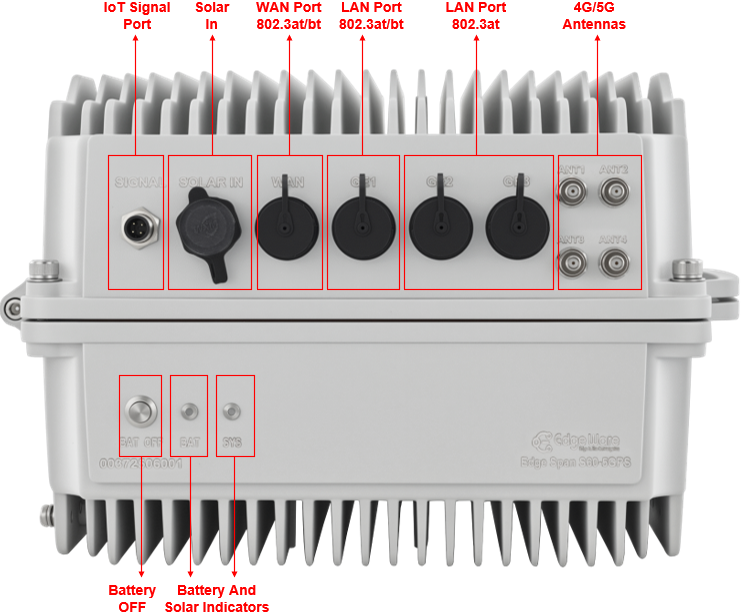

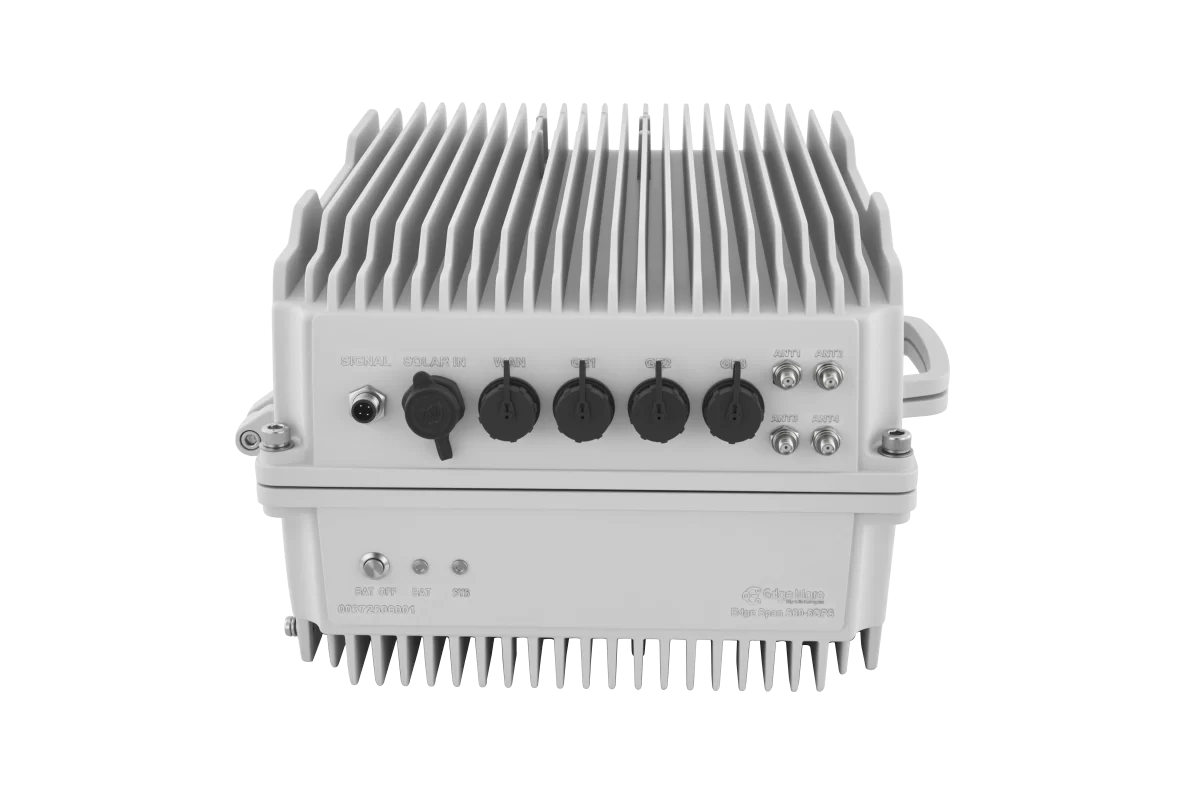

Edge Span S60-5GPS Port Configuration
The Edge Span S60-5GPS port configuration is as shown above. It typically comes with one IoT signal port. Depending on the number of sensors used, we can configure cables to allow multiple IoT sensors to be connected to one port.
The WAN port and one LAN port support 802.3bt 90W PoE, allowing for high-power wireless antennas and multi-sensor cameras. There are also two 802.3at ports.
Edge Span S60-5GPS General Specification
- IP65/NEMA4 Waterproof
- W*H*D 295mm*355mm*214mm
- 22kg
- Aluminum Cast Enclosure Rust-Proof
- Operating Temperature:-20~+55°C
- Working Humidity:5%~90%
- Power Surge Protection:20Ka
- Worldwide 5G/4G Band Supported
- WIFI Optional
- GPS Optional
- RS485/RS232/DI/DO Optional
- Industrial 5G/4G POE Router Module Embedded
- 1*1000Base-X/1000Base-T Combo WAN Port
- 3*1000Base-T LAN Ports
- 1 WAN Port 802.3at/bt POE++ 90W
- 1 LAN Port 802.3at/bt POE++
- 2 LAN Ports 802.3at POE+
- 600W MPPT Solar Controller
- 2640Wh Lithium Battery(48V55AH)
Dimension and Weight
Edge Span S60-5GP Security Camera Solar Power Supply dimension and weight as followings:
- The weight of the whole system is 22kg (with battery installed)
- Dimension of the whole system: 351mm*295.5mm*214mm (W*H*D)
Installation of Edge Span S60-5GP Solar Battery Enclosure
Pole Mounting Installation
Edge Span S60-5GP supports pole mounting installation
Wall Mounting Installation
Edge Span S60-5GP supports wall mounting installation
Application of UPS for CCTV System
The solar and battery configuration of the Edge Span S60-5GPS Security Camera Solar Power Supply allows the edge IoT solution to be easily deployed in any environment. This allows various industrial controls, smart agriculture, CCTV cameras, WIFI APs, etc. to be deployed in remote areas without being restricted by electricity.
Main Function Units
As shown in the figure above, this is the configuration of Edge Span S60-5GPS
Solar Power Generation and Usage Statistics
Edge Span S60-5GPS solar power supply for cctv camera has a built-in solar power statistics function, which can record the solar energy generation and usage data every hour, day, week, and year on the software platform and the local UI of the device. This allows customers to have a more detailed understanding of the site’s operation and becomes the data basis for expansion and future site construction.
Time-Scheduled Load On/Off
Edge Span S60-5GPS solar power supply for cctv camera can schedule the opening and closing of different POE ports based on time. For example, the WIFI AP and some unimportant sensors can be turned off at night to save battery power at night. This ensures that important devices can have longer system autonomy time.
Conditional Load On/Off
Edge Span S60-5GPS can turn on and off different loads according to preset conditions. For example, when the remaining battery capacity is 40%, non-important loads are turned off, leaving only important loads running. This ensures that the ultimate function of the entire system can extend its battery operation time as much as possible without solar energy.
Solar Controller State Monitoring
When the solar battery enclosure is deployed outdoors, controlling the operating status of the solar controller is very helpful for the operation and maintenance of the entire network. Problems can be diagnosed remotely so that on-site repair and maintenance can be completed faster and better when needed. Edge Span’s built-in solar controller can be remotely monitored and managed by Edgeware’s Convergence software platform, allowing users to easily implement remote operation and maintenance.
Battery Management System
The life and operation of the battery are also very important for the operation of edge site system, especially when there are a large number of sites and power outages are very frequent. After 5-10 years of site deployment, it is inevitable that some batteries will need to be replaced because they have exceeded the usage limit. The built-in BMS of Edge Span S60 can provide you with various information such as battery voltage, current, power, power, number of cycles, single cell voltage, cell voltage balance, etc. to help you understand its operation status through our software platform at the maintenance center.
IoT Sensor Edge Control and Computing
Edge Span S60-5GPS can be designed for the integration of IoT sensors and devices. Edgeware has a complete portfolio of IoT devices for customers to choose from. Third-party IoT devices of customers can also be customized and integrated based on the programmable edge computing capabilities of Edge Span S60-5GP. Thus, a one-stop landing of sensors, edge sites, and software is formed.
5G and WAN Port Backup Each Other
Edge Span S60-5GPS is designed with the reliability of the overall network backhaul of the system in mind. It can set up a master-slave connection between 4G/5G and Fiber WAN. When the master link is down, the slave link swaps as the main link. When the master link is back, the traffic goes back to the main link.
Main Steam VPN Supported for Enhanced Security
Edge Span S60-5GPS supports mainstream VPN technologies, greatly simplifying IP planning during network deployment. At the same time, it also greatly increases the security of site data for sites with high data security requirements.
Envrionment Management
The deployment environment of solar for Edge Span is relatively complex, so Edge Span has built-in temperature and humidity sensors that can synchronize real-time conditions to the software platform.
POE Switch Management and Control
The POE port of Edge Span S60-5GP can be remotely monitored by software for real-time POE power consumption and current. At the same time, for video surveillance scenarios, in many cases when CCTV camera is stuck, you can restart the camera by restarting the corresponding POE port of Edge Span through software.
Third Party Software Platform Integration
Although Edgeware has its own software platform, customers often have their own considerations for the management of the entire network and have their own management system or OSS. UPS for CCTV is only part of customer network.Therefore, Edge Span can also provide services that are integrated into your third-party platform.
PRTG Software Platform
https://www.paessler.com/
Thingsboard Software Platform
https://thingsboard.io/
Customers have various ways of managing Edge Span S60-5GP, so we also provide MQTT and SNMP protocols to connect with customers’ software platforms.
Customization Development
We also provide customers with customized development based on Edge Span U60 UPS for CCTV system, which includes the following services:
(1) Embed the customer’s equipment in Edge Span S60 enclosure
(2) Increase or decrease the battery capacity
(3) Customize the control logic of the whole machine. For example:
A. When the battery capacity is less than 40%, close several specific POE ports to put the whole machine into power saving mode.
Read a specific sensor, set an alarm, and turn on a certain device.
B. The above are just simple examples, because our company has customized and developed many projects and it is impossible to list them one by one. In short, we are very willing to carry out customized development based on customer scenarios to achieve one-stop delivery.
Specifications
| Edge Span S60-5GP General Specification | |
| Dimension | 351mm*214mm*355.5mm(W*D*H) |
| Enclosure Material | Aluminum Cast Enclosure |
| Ingress Protection | IP65/NEMA4 |
| IK Rating | IK08 |
| Weight | 22kg |
| Operating Temperature and Humidity | -20~+55°C/10 % to 95 % non-condensing |
| System Surge Protection | Power Input Surge Protection:20KA Ethernet Port:6KV |
| Solar Input Voltage | 24-50VDC Rated Voltage Input:36VDC |
| Solar Input Current | 10A |
| Solar Max Input Current | 20A |
| Solar Controller Type | MPPT |
| Solar Controller Capacity | 500W |
| System Rated Output Voltage | 54VDC |
| System Output Voltage Range | 42-54VDC |
| System Output Power | 500W |
| System Max Output Current | 10A |
| Battery | 2640Wh Lithium Battery(48V55AH) |
| Battery Management | Embedded with BMS |
| Battery Rated Voltage | 54V |
| Discharging Voltage Cutoff | 42V |
| Max Charging and Discharging Current | 10A |
| 5G Router Module | EX900 Industrial 5G Router Module |
| Ethernet Port | 4*10/100/1000Base-T RJ45 ports 1*100/1000Base-X SFP |
| PoE | WAN port support IEEE 802.3af/at 30W POE+ Downlink ports 1-3 can support IEEE 802.3af/at 30W POE+，port 4 supports 802.3bt 110W(Optional). Configure with 300W UPS Max POE Power 240W Configure with 100W UPS Max POE Power 80W(802.3bt Not recommended) |
| RS485 | Can be configured as scenario request , run as modbus |
| DI/DO | Can be configured as scenario request |
| Edge Span S60-5GP Wireless and Network Protocol Specification | |
| 5G and Wireless | |
| APN | Auto APN |
| 5G | 5G: 5G SA: DL 2.4 Gbps,UL 900 Mbps; 5G NSA: DL 3.4 Gbps; UL 550 Mbps, LTE: up to 1.6 Gbps(Cat 19); UL up to 200 Mbps(Cat18). |
| Edge Span S60-5GP Wireless and Network Protocol Specification | |
| WIFI(Optional) | |
| WIFI Mode | IEEE 802.11b/g/n/ac, Access Point (AP), Station (STA) |
| WiFi Security | WPA2-Enterprise – PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation |
| SSID | SSID hidden mode,dual SSIDs. |
| Network Protocol | |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, RIPng) |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake On Lan (WOL) |
| Connection Monitoring | TCP-Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| DHCP | Static and dynamic IP allocation, DHCP Relay |
| Network Backup | WAN and Mobile back up, can be one as main one as backup. |
| VPN | |
| OpenVPN | Multiple clients and server can be running simultaneously, 12 encryption methods |
| OpenVPN Encryption | DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC |
| IPsec | IKEv1, IKEv2, supports up to 4 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256) |
| GRE | GRE tunnel |
| PPTP, L2TP | Client/Server services can run simultaneously |
| Management | |
| SSH | SSH (v1, v2) |
| SNMP | SNMP (v1, v2, v3), SNMP trap |
| MQTT | MQTT |
| GPS | |
| GPS | GPS Ooptional |
